I need help with …

Contact jeffj@zzzpanix.com (remove zzz for address).


I'd love to re-use salvaged parts such as
  1. cache on stick: I need the spec sheet (pinout, timing)


Many thanks to the clever folks sharing their discoveries such as
DevSter's 8041 / 8042 Microprocessors Technical Information Page for re-using the keyboard microcontroller easily salvaged from old motherboards (since they're socketed).

Datamedia Corporation of Pennsauken, NJ

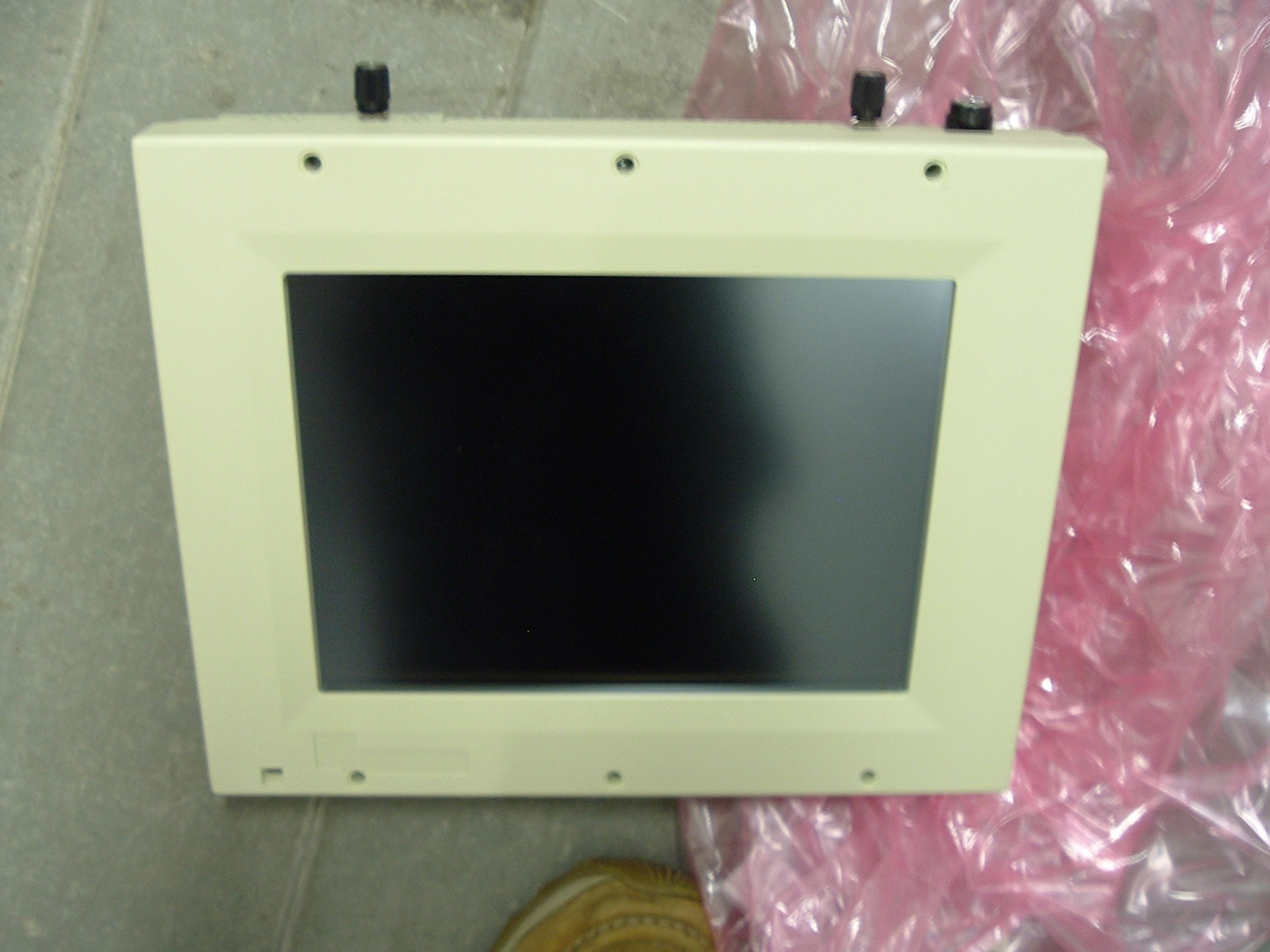

model t-slate
It's a touch-screen neon plasma panel

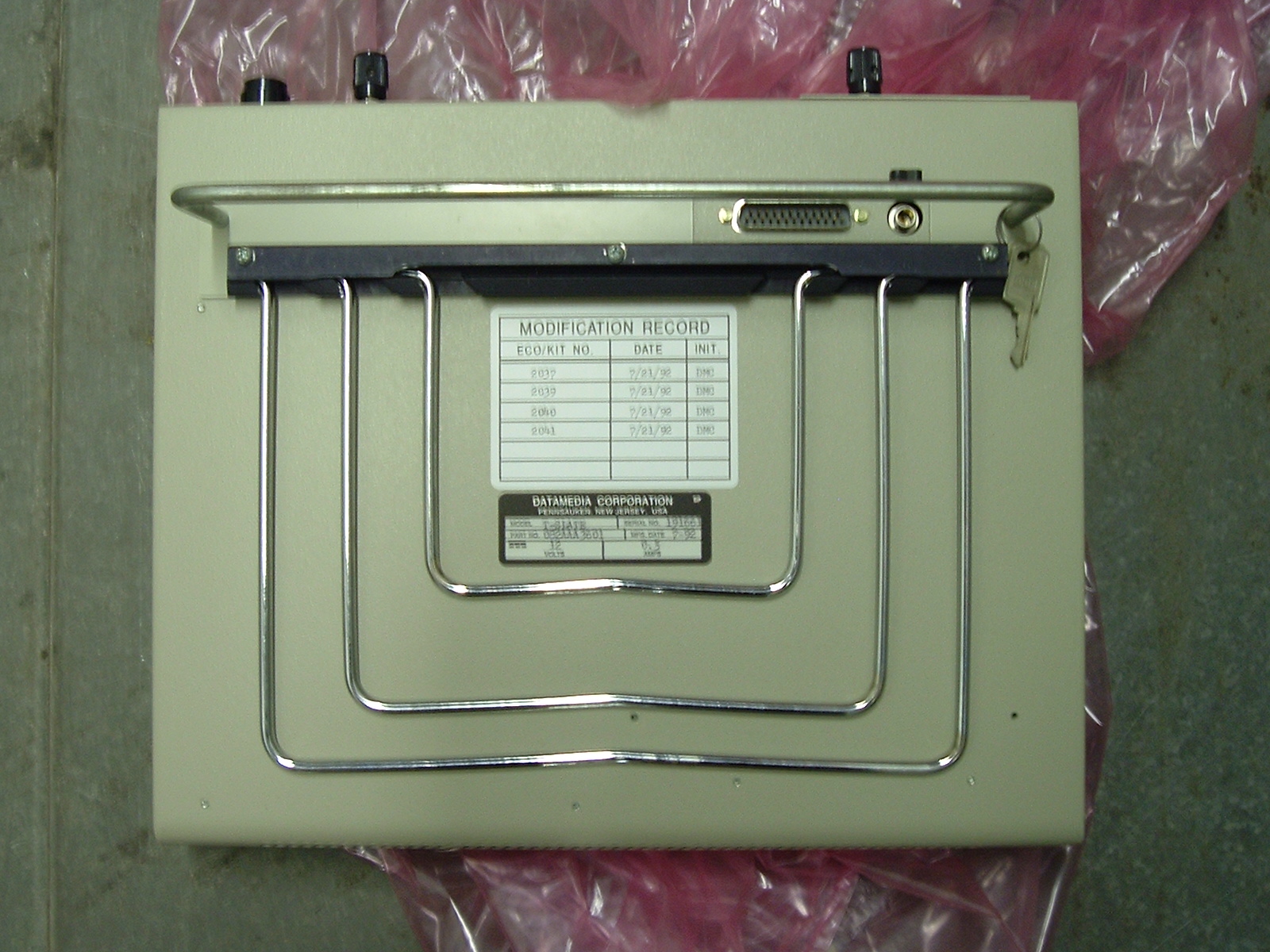

There are 3 wire tilt-stands for different angles.
click for full size

I NEED TO KNOW: what protocol/commands it uses for the touch-screen and if it emulates anything.


Similar to that, also from Dow Jones Telerate is this

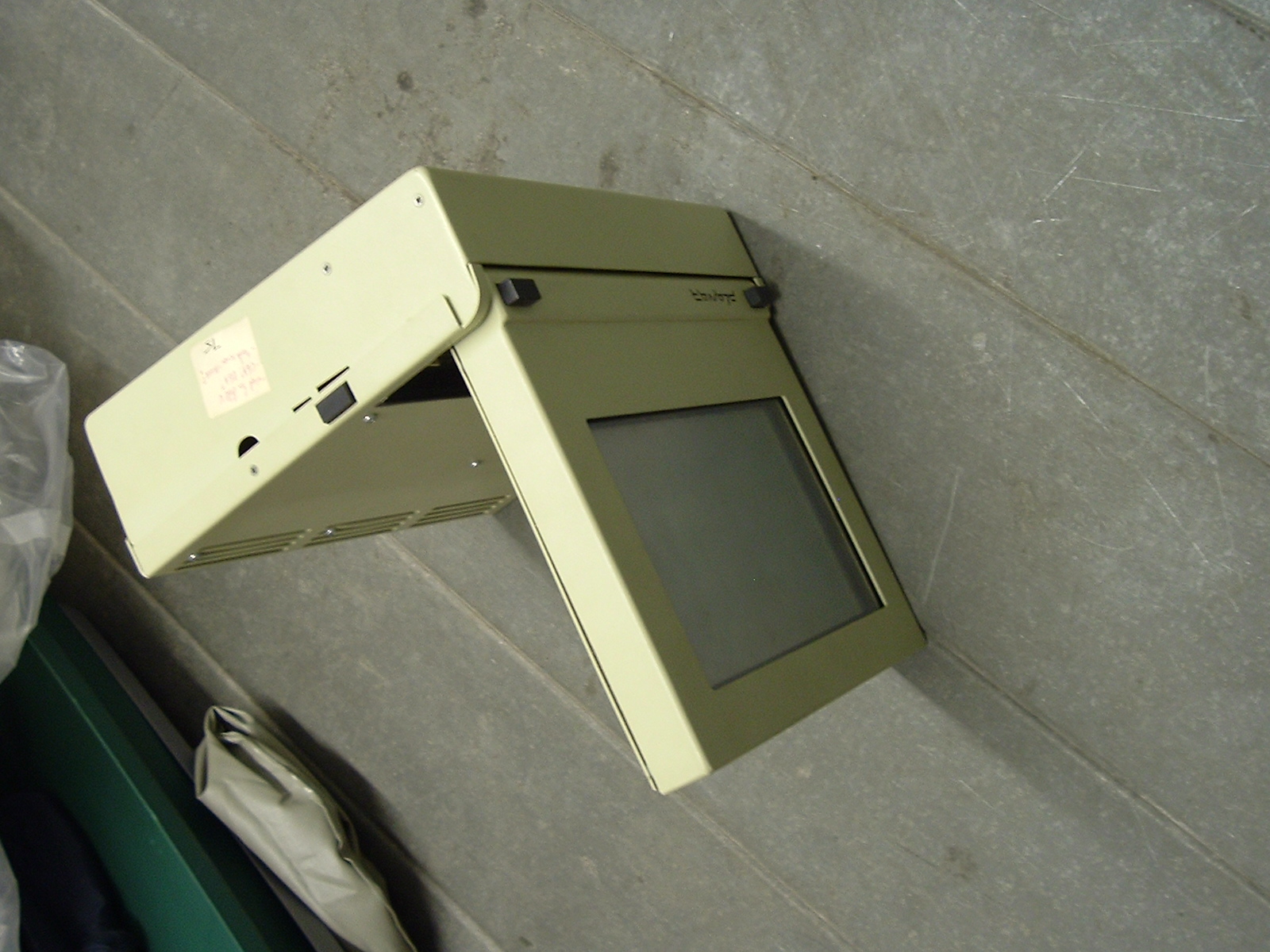

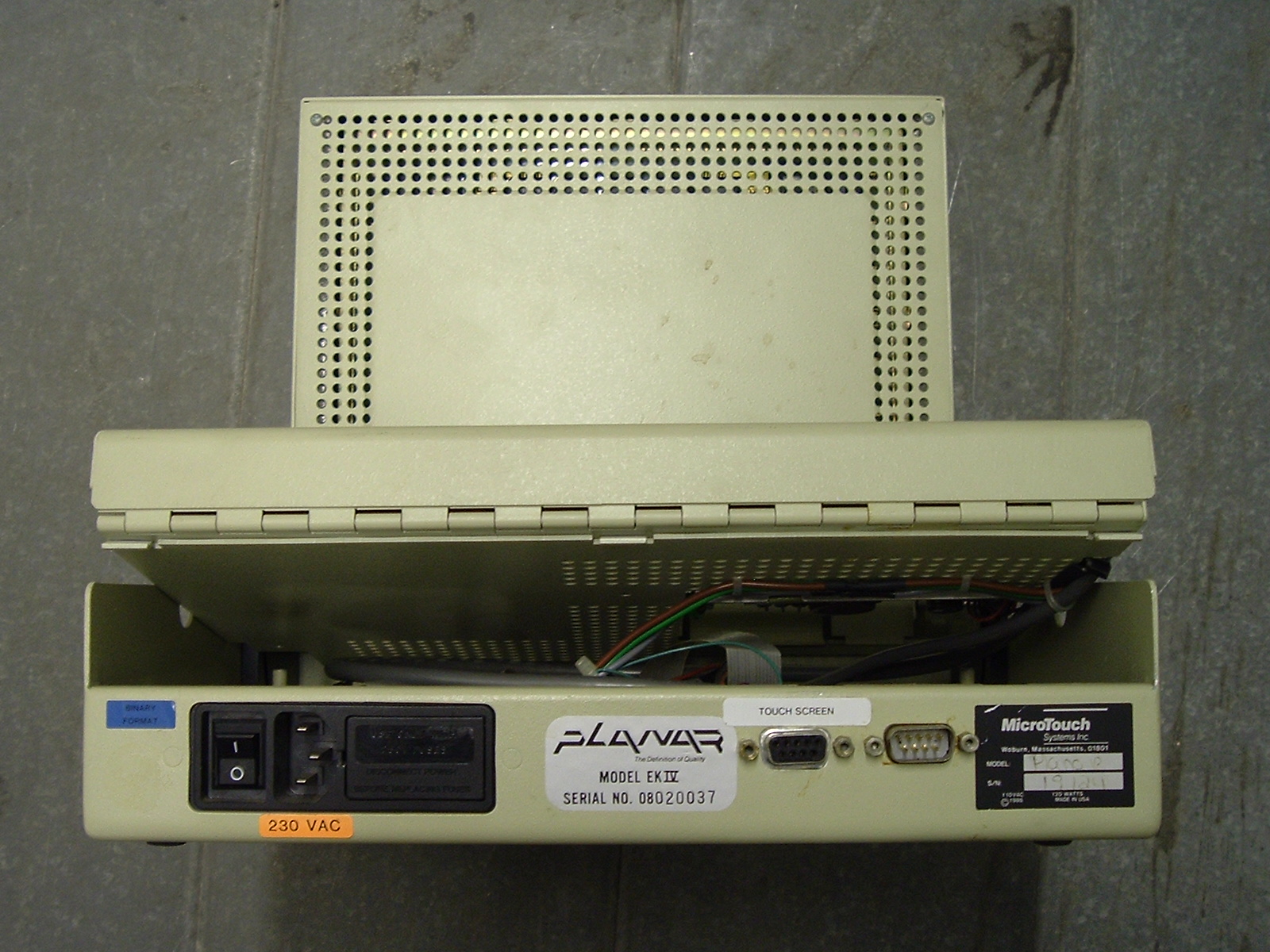

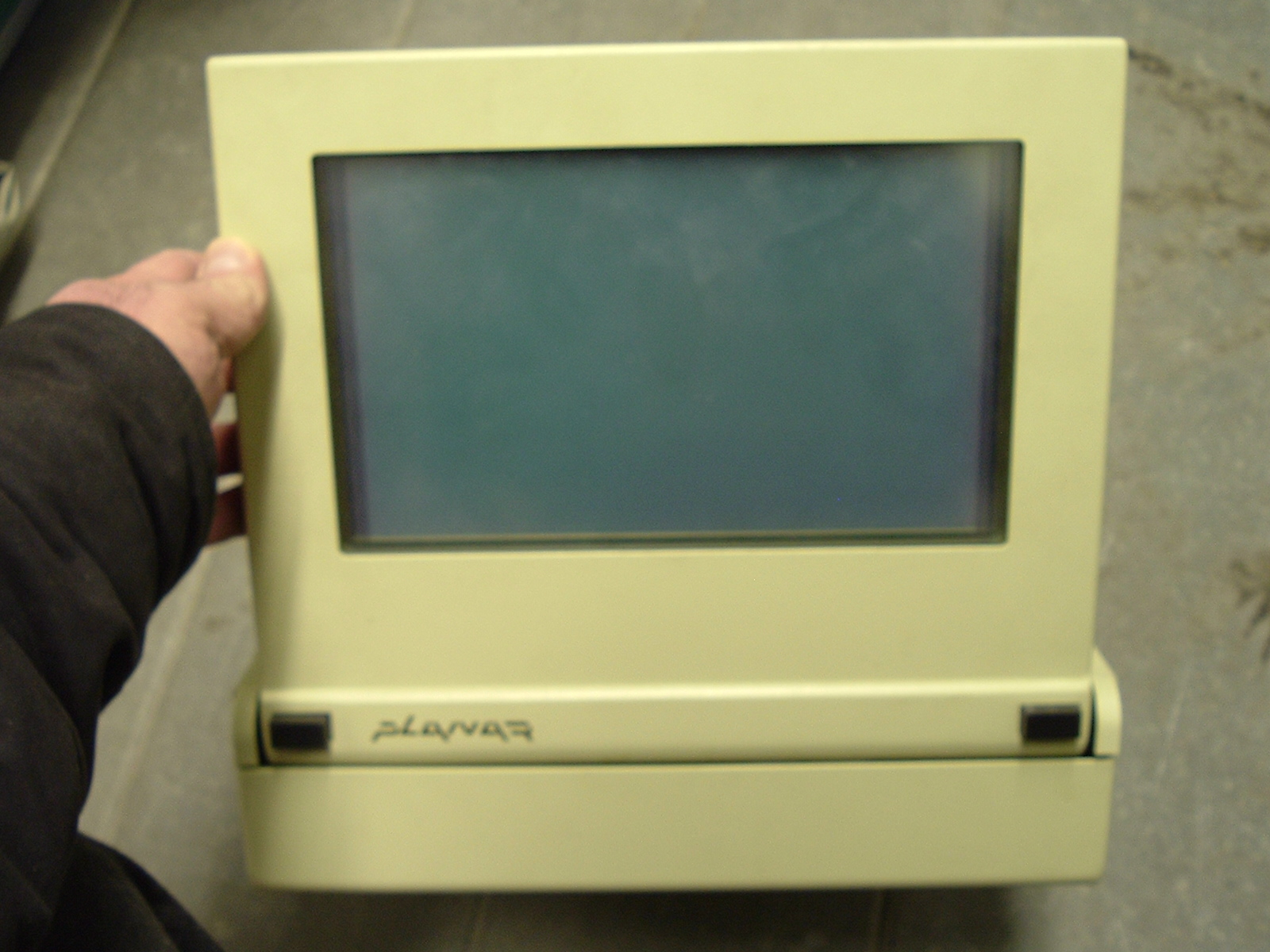

MicroTouch Systems Planar model EK IV
click for full size

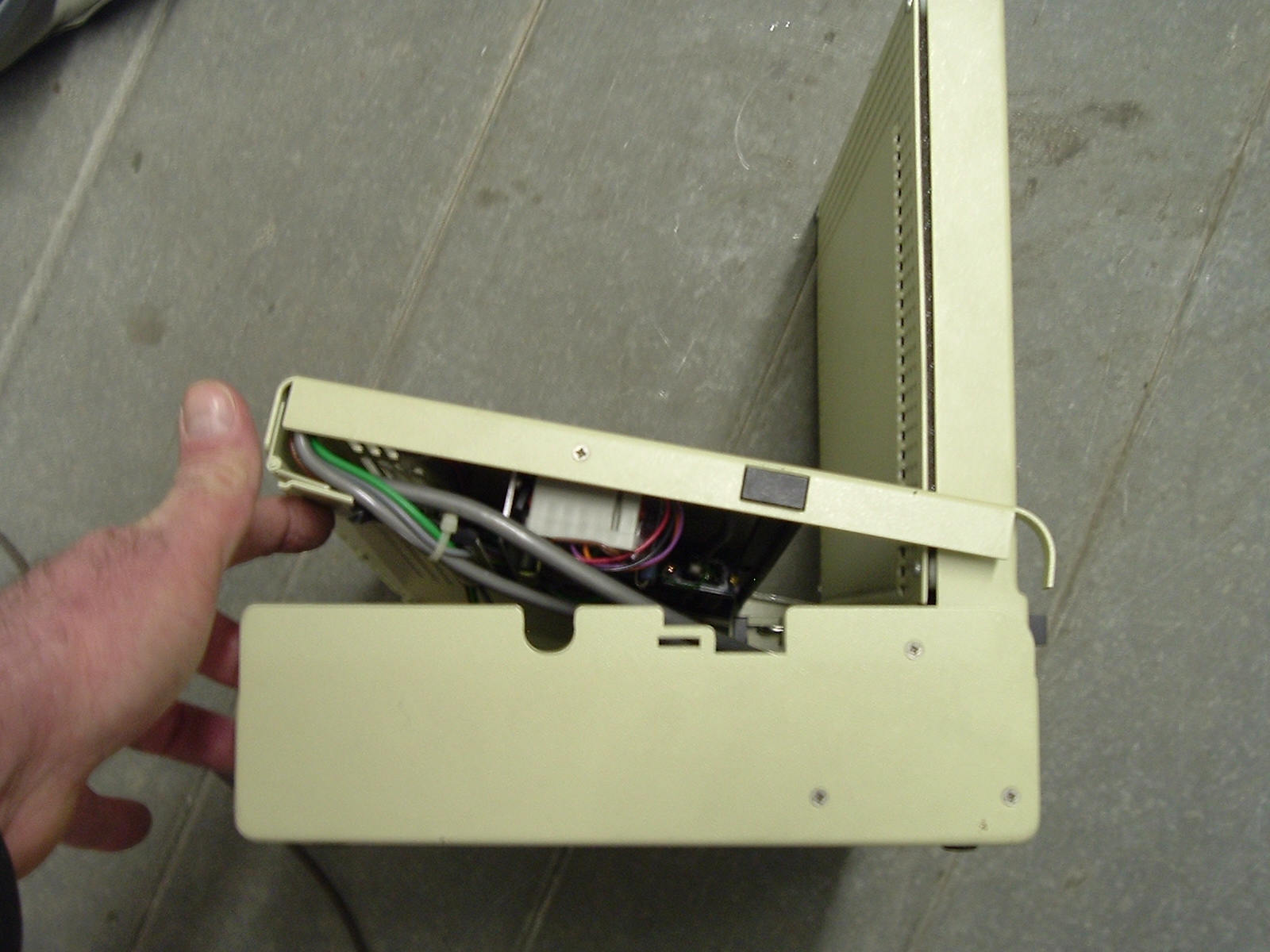

It would fold down flat if not for the touch screen PCB bolted-on the top

I NEED TO KNOW: what protocol/commands it uses for the touch-screen and if it emulates anything.
