The AT&T WE 321SB VMEbus single board computer
and Unix System V/VME

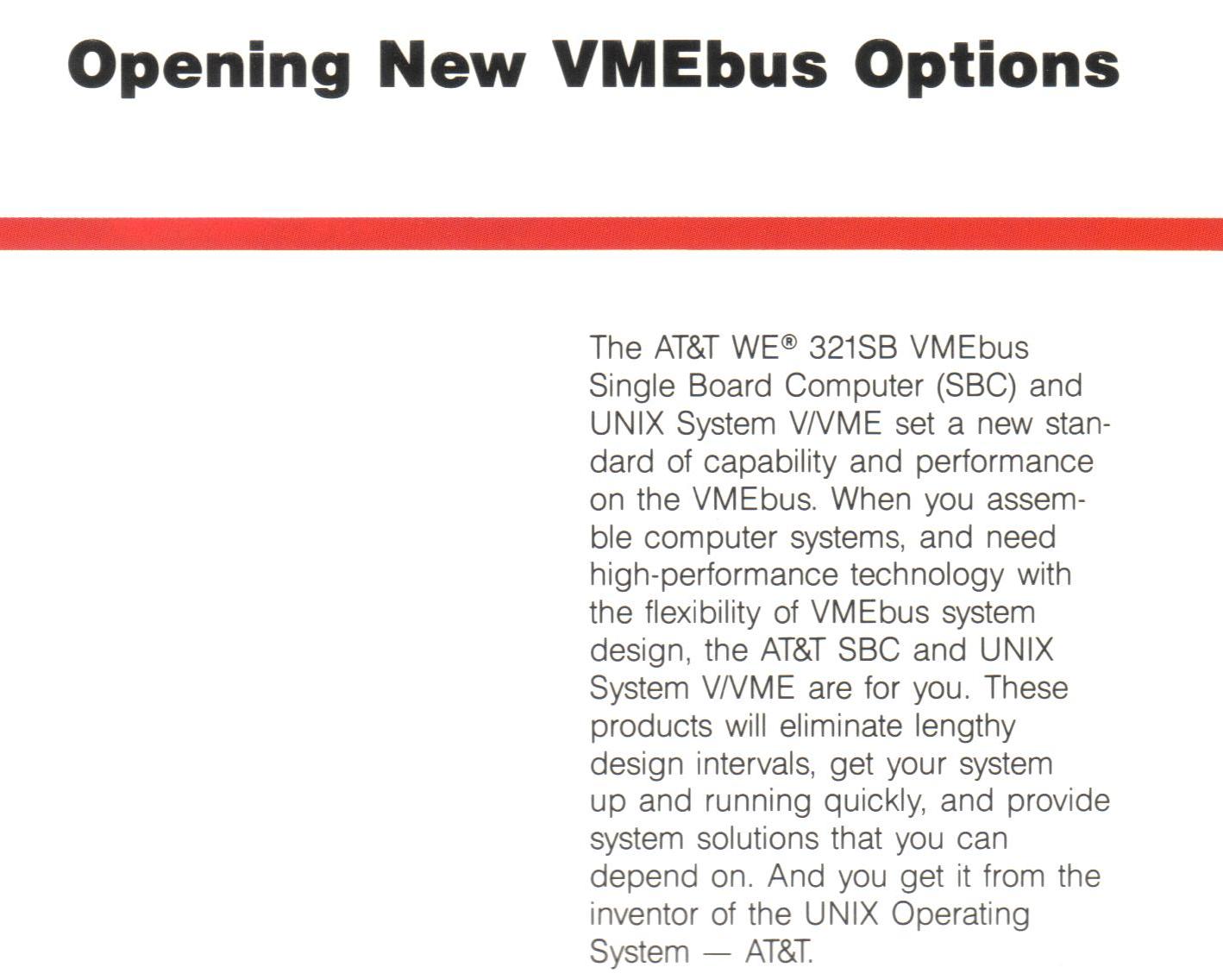

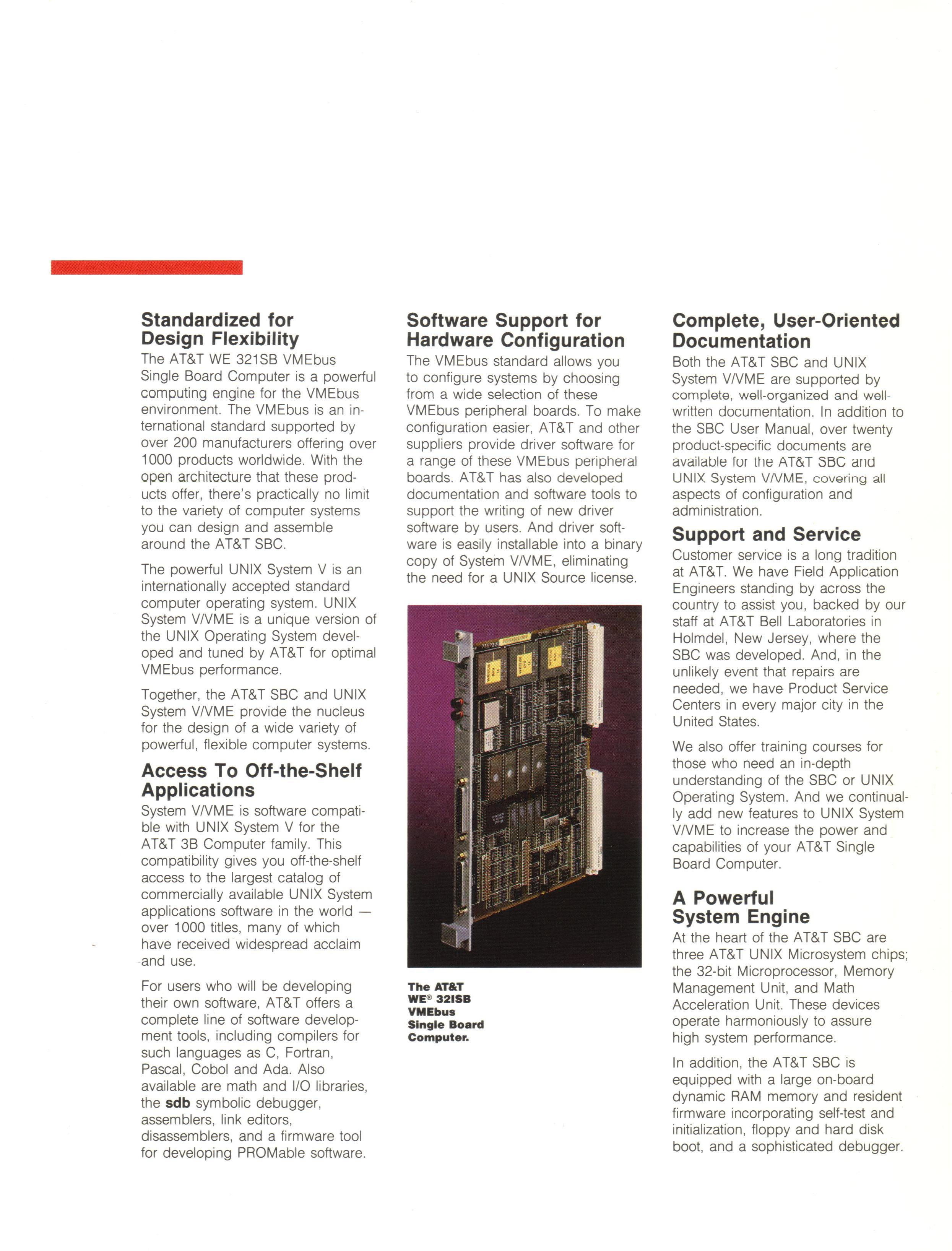

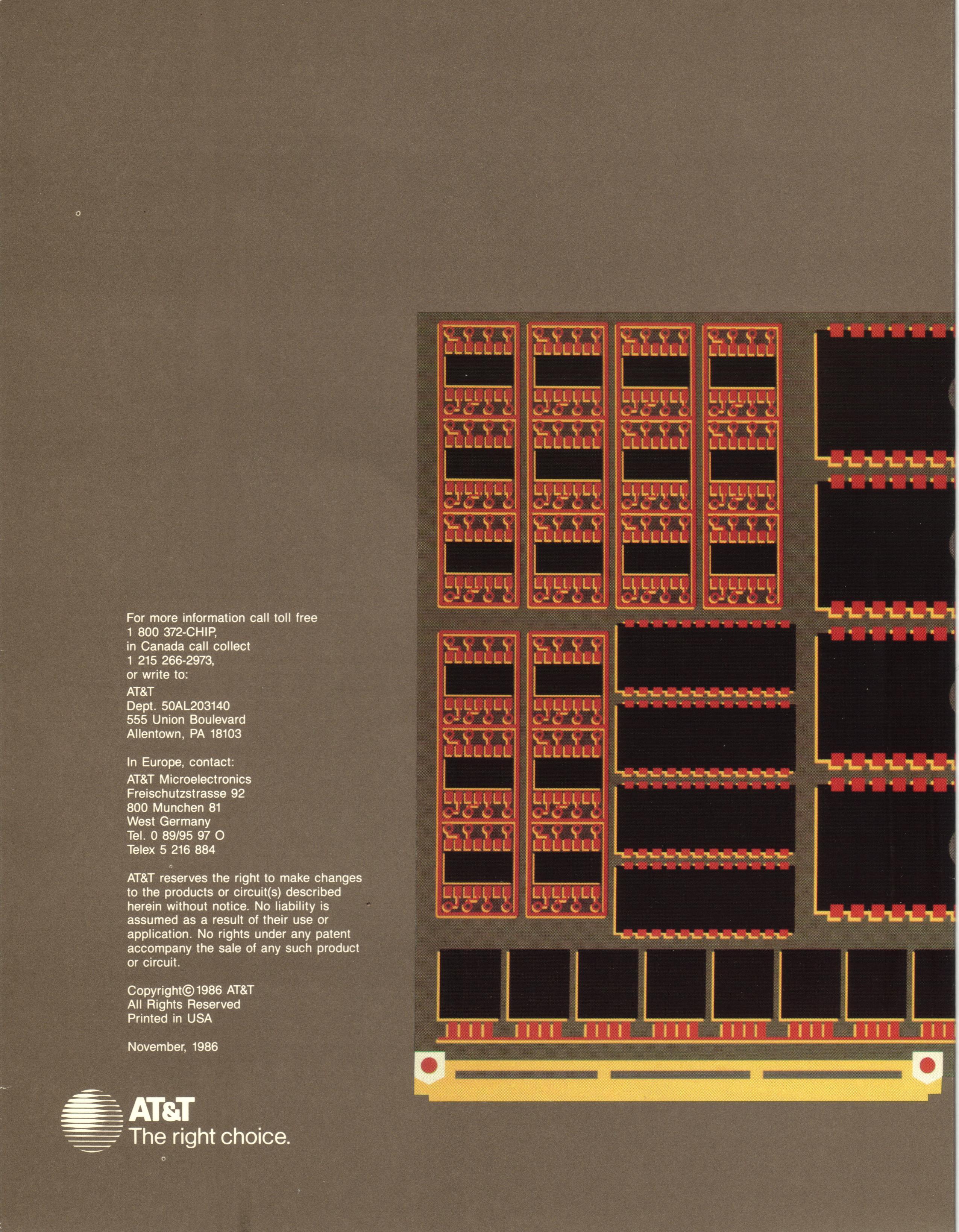

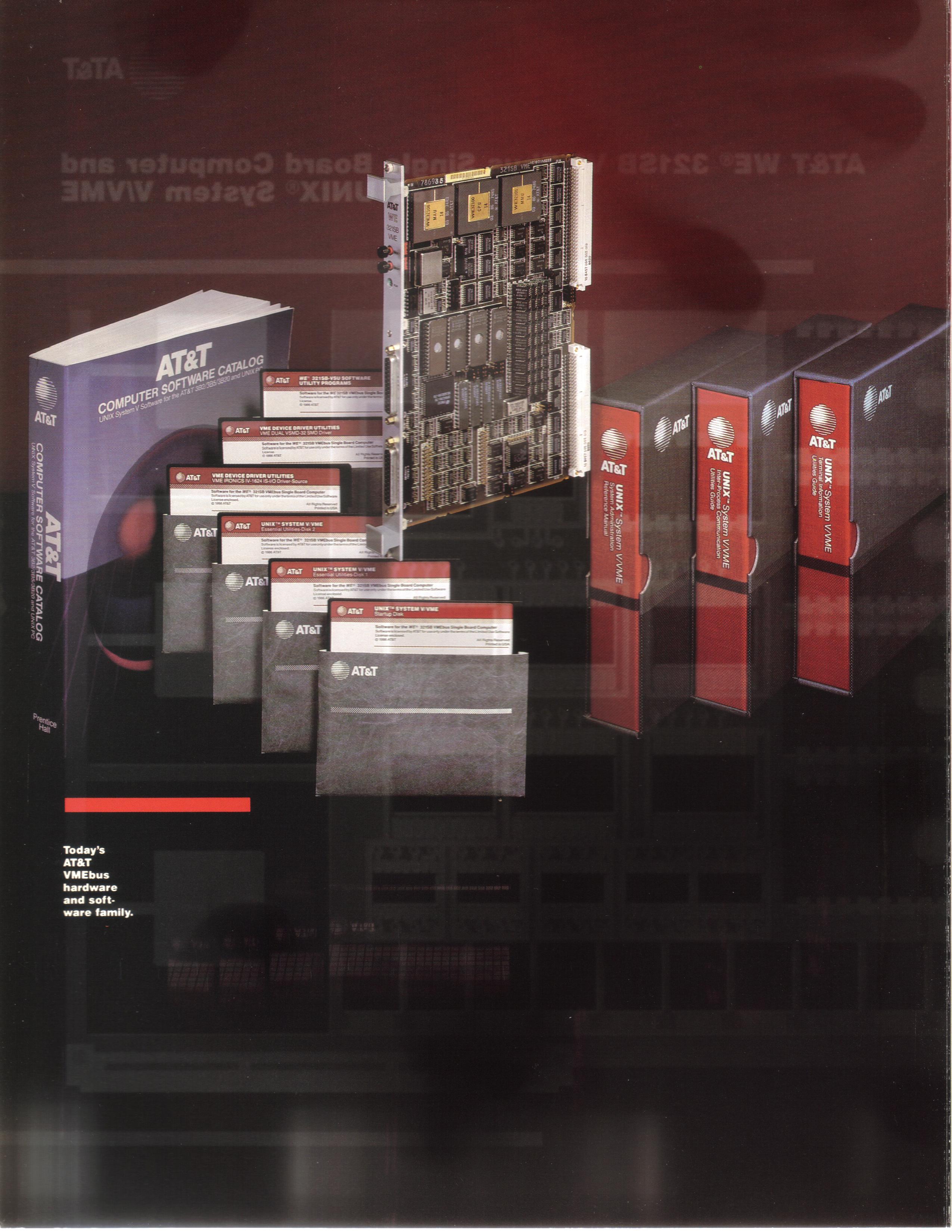

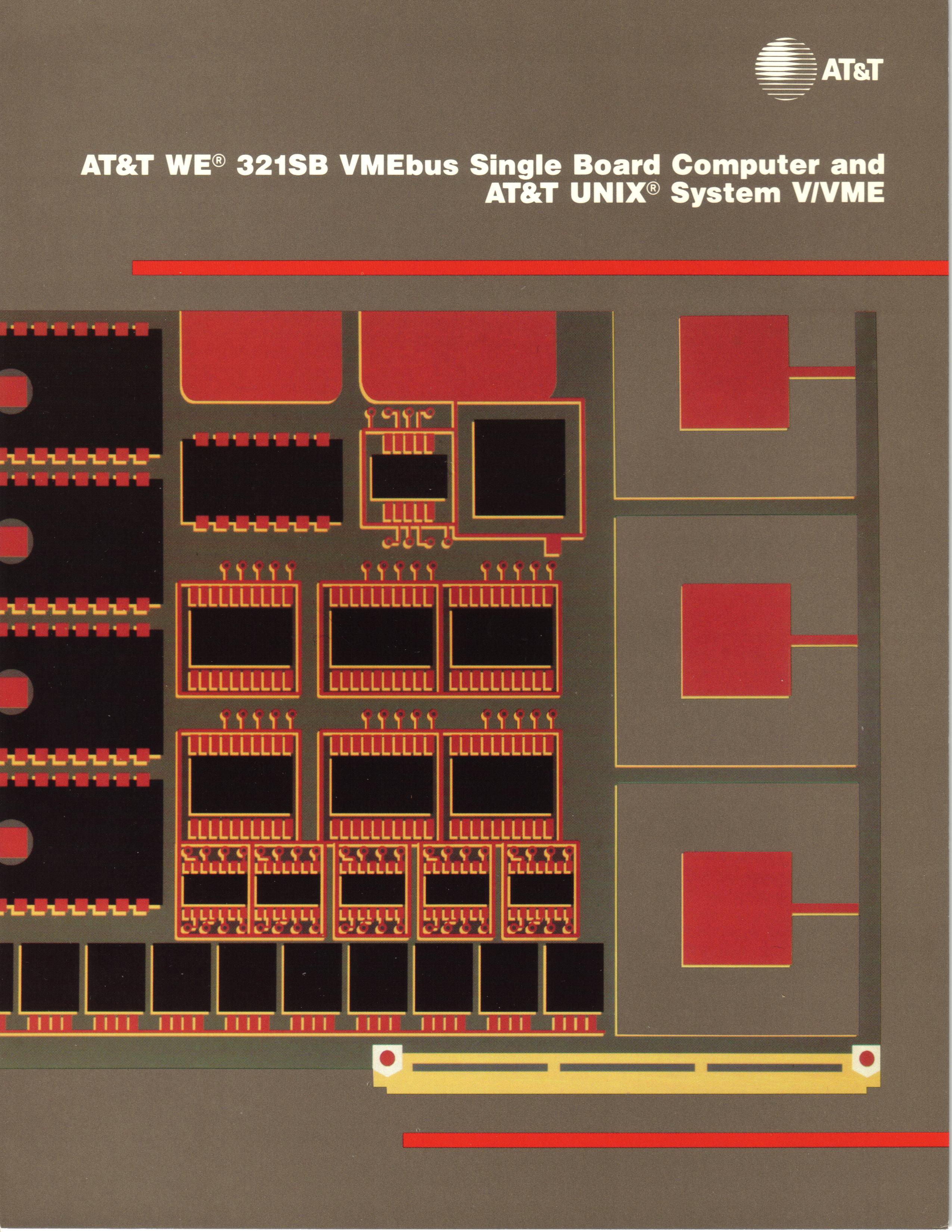

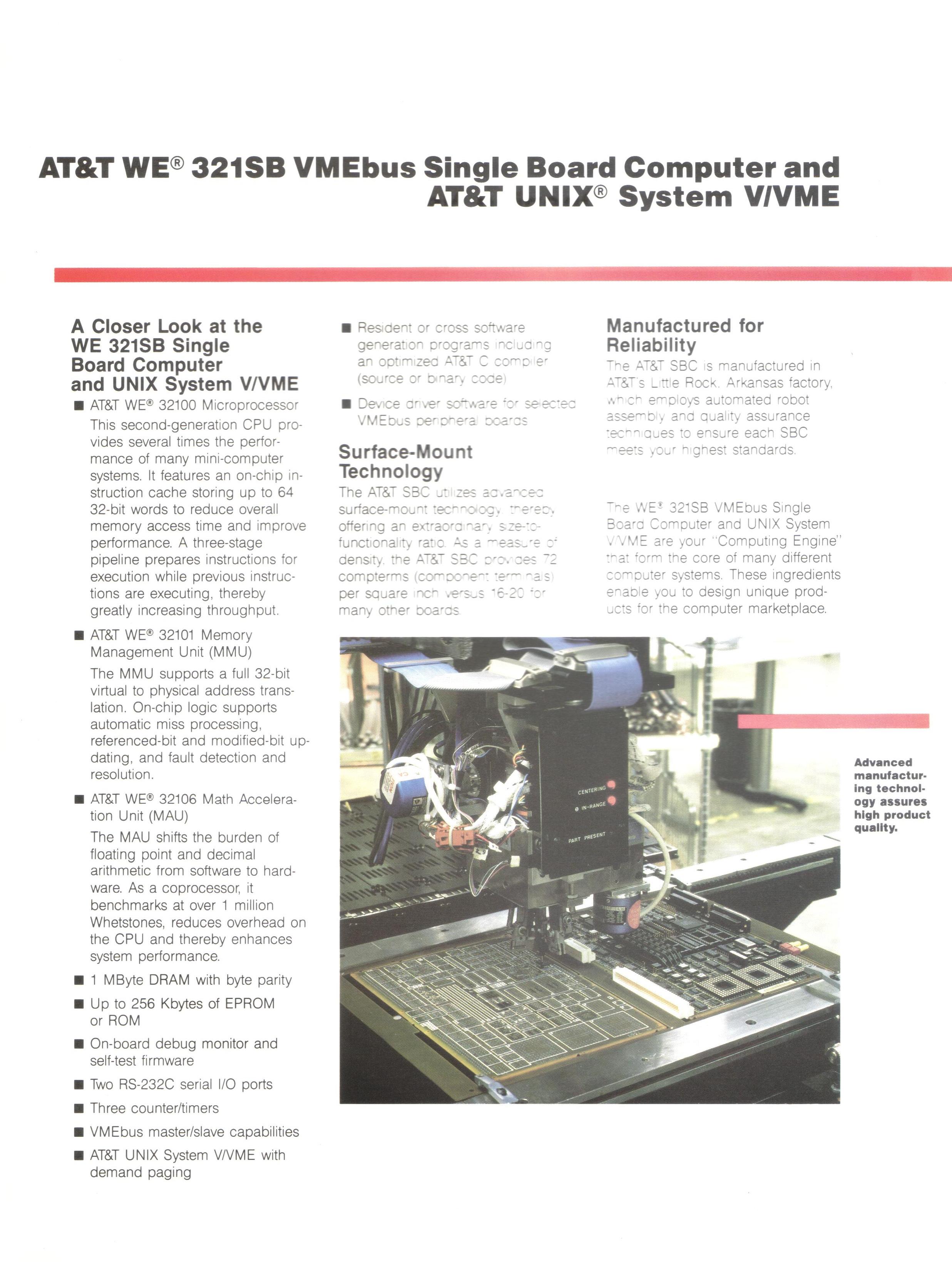

brochure for the AT&T 32000 CPU based VME card

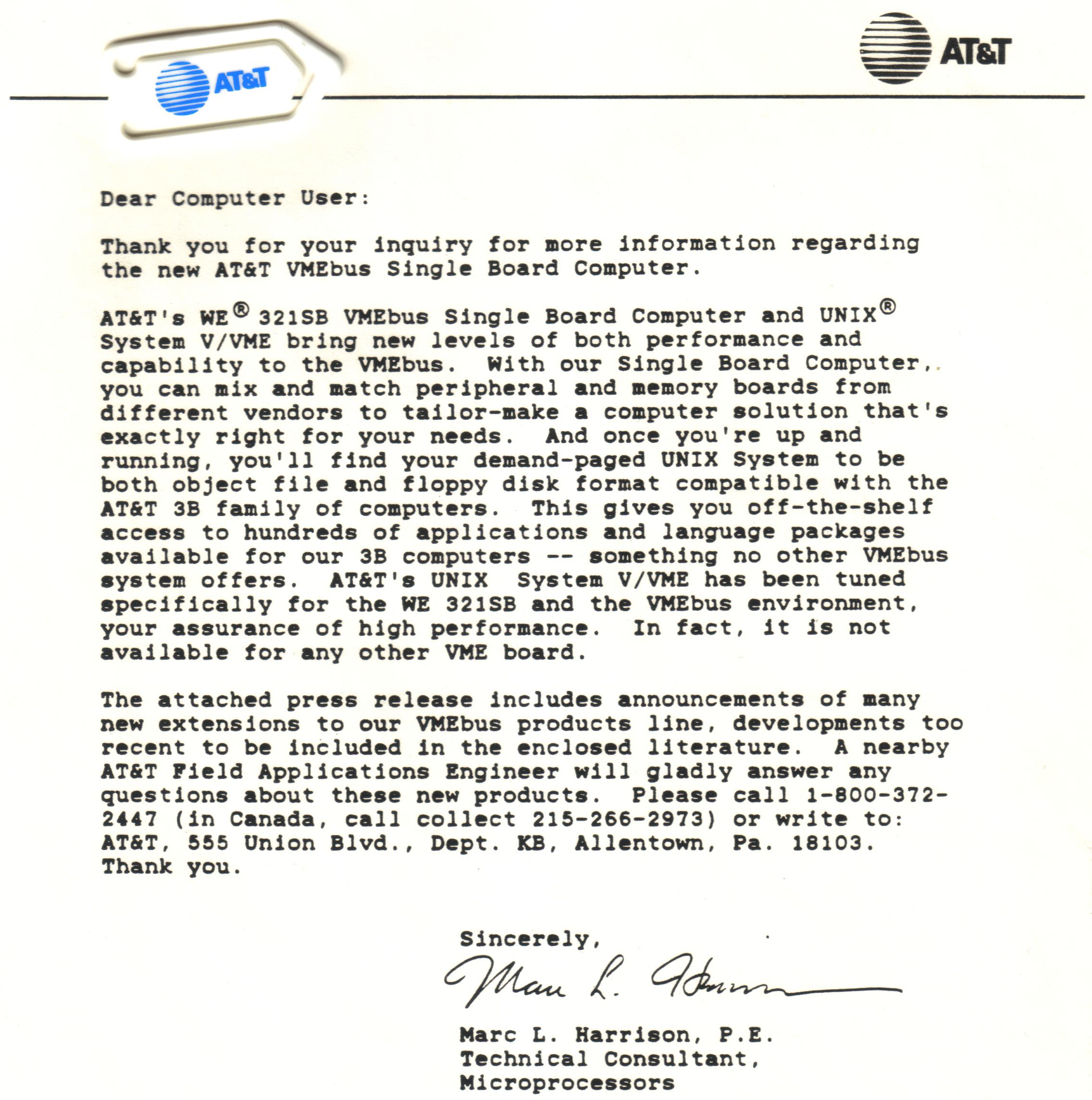

Press Release

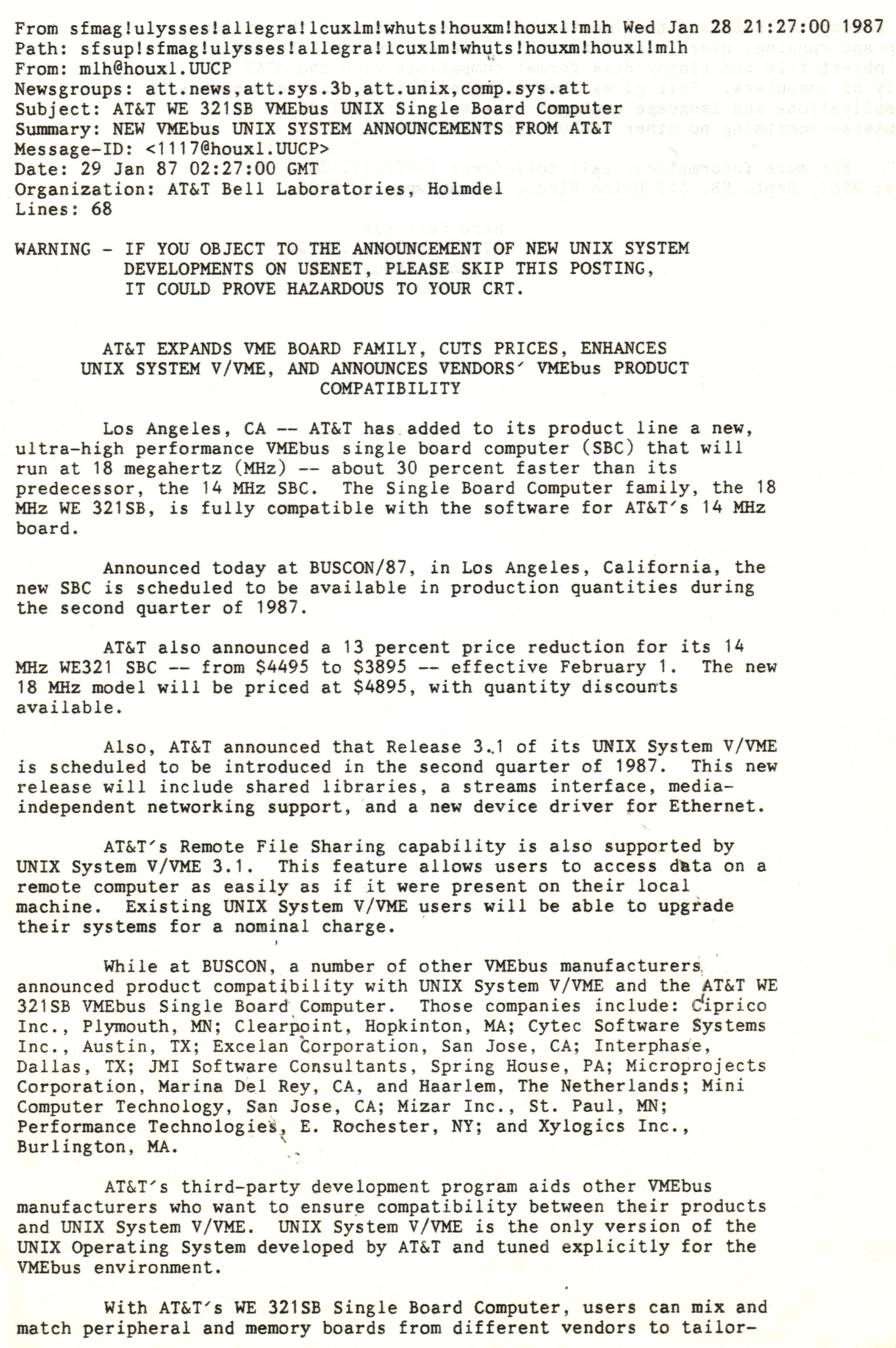

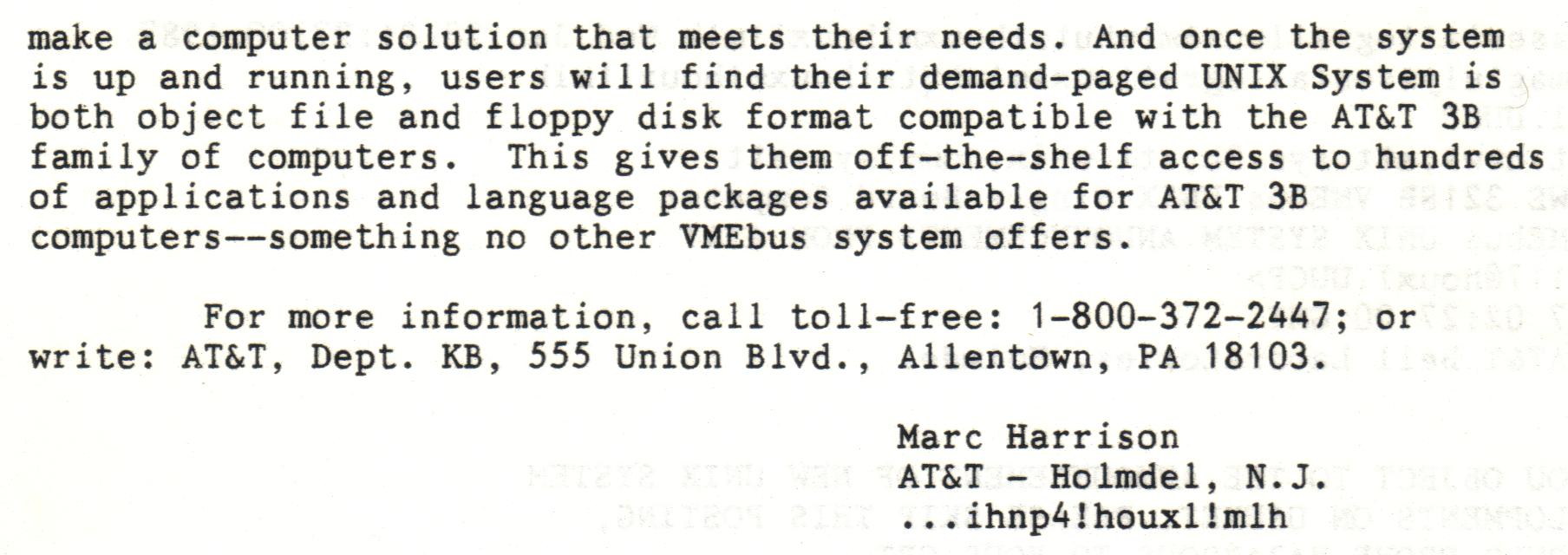

Usenet product announcement of the 18 MHz version: Jan 1987
The WE 321SB includes
-
AT&T WE 32100 CPU
-
WE 32101 MMU (Memory Management Unit)
-
WE 32106 MAU (Math Acceleration Unit)
-
one megabyte of DRAM with parity
-
four JEDEC EPROM/ROM sockets for up to 256k
-
two RS-232C ports
-
three 16 bit counter/timers
-
an interrupt controller
-
VMEbus interface
-

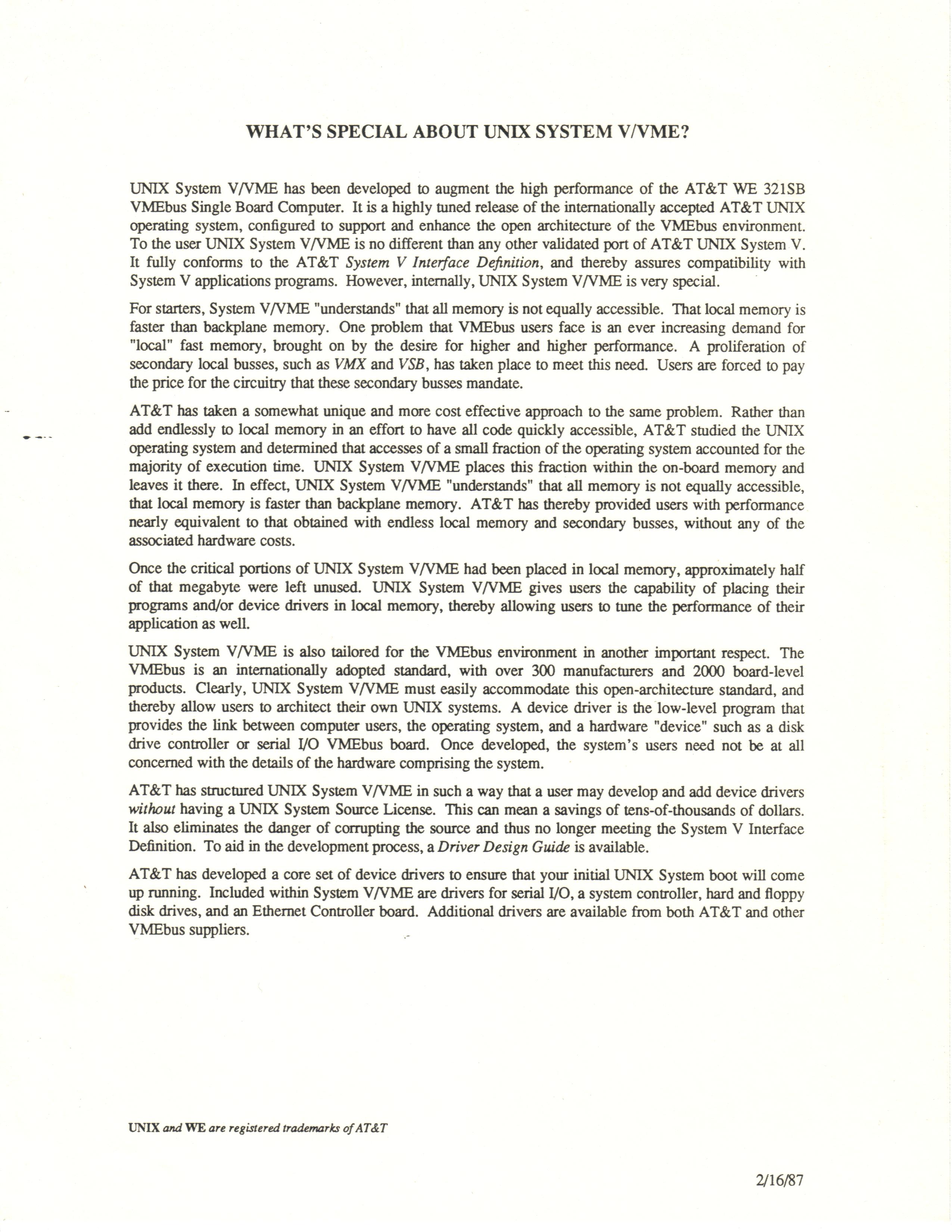

AT&T Unix system V/VME with demand paging
